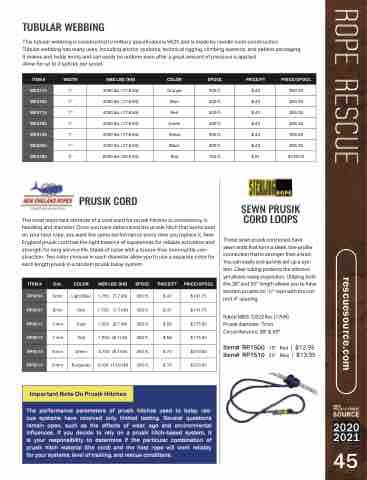

Page 47 - Rescue Source Catalog

TUBULAR WEBBING
This tubular webbing is constructed to military specifications 5625 and is made by needle loom construction.
Tubular webbing has many uses, including anchor systems, technical rigging, climbing systems, and patient packaging. It makes and holds knots and can easily be undone even after a great amount of pressure is applied.
Allow for up to 3 splices per spool.
ITEM # #
WIDTH
MBS LBS. (KN)
COLOR
SPOOL
PRICE/FT
PRICE/SPOOL
WE3710
1"
4000 lbs. (17.8 kN)
Orange
300 ft.
$.43
$95.00
WE3700
1"
4000 lbs. (17.8 kN)
Blue
300 ft.
$.43
$95.00
WE3715
1"
4000 lbs. (17.8 kN)
Red
300 ft.
$.43
$95.00
WE3785
1"
4000 lbs. (17.8 kN)
Green
300 ft.
$.43
$95.00
WE3725
1"
4000 lbs. (17.8 kN)
Yellow
300 ft.
$.43
$95.00
WE3800
1"
4000 lbs. (17.8 kN)
Black
300 ft.
$.43
$95.00
WE3780
2"
8000 lbs. (35.6 kN)
Red
150 ft.
$.91
$136.50
PRUSIK CORD
The most important attribute of a cord used for prusik hitches is consistency in handling and diameter. Once you have determined the prusik hitch that works best on your host rope, you want the same performance every time you replace it. New England prusik cord has the right balance of suppleness for reliable activation and strength for long service life. Made of nylon with a torque-free, kernmantle con- struction. Two color choices in each diameter allow you to use a separate color for each length prusik in a tandem prusik belay system.
SEWN PRUSIK CORD LOOPS
These sewn prusik cord loops have
sewn ends that form a sleek, low-profile connection that is stronger than a knot. You can easily and quickly set up a sys- tem. Clear tubing protects the stitches yet allows ready inspection. Utilizing both the 38” and 50” length allows you to have tandem prusiks on 1/2” rope with the cor- rect 4" spacing.
Rated MBS: 3,822 lbs. (17kN) Prusik diameter: 7mm Circumference: 38" & 50"
Item# RP1500 19” Red | $12.95 Item# RP1510 25” Blue | $13.95
ITEM #
DIA.
COLOR
MBS LBS. (KN)
SPOOL
PRICE/FT
PRICE/SPOOL
RP5000
6mm
Light Blue
1,750 (7.7 kN)
300 ft.
$.47
$141.75
RP5001
6mm
Red
1,750 (7.7 kN)
300 ft.
$.47
$141.75
RP5011
7 mm
Gold
1,955 (8.7 kN)
300 ft.
$.58
$175.35
RP5012
7 mm
Teal
1,955 (8.7 kN)
300 ft.
$.58
$175.35
RP5013
8 mm
Green
3,100 (8.7 kN)
300 ft.
$.70
$210.00
RP5014
8 mm
Burgundy
3,100 (13.8 kN)
300 ft.
$.70
$210.00
Important Note On Prusik Hitches
The performance parameters of prusik hitches used to belay res- cue systems have received only limited testing. Several questions remain open, such as the effffects of wear, age and environmental inflfluences. If you decide to rely on a prusik hitch-based system, it is your responsibility to determine if the particular combination of prusik hitch material (the cord) and the host rope will work reliably for your systems, level of training, and rescue conditions.
