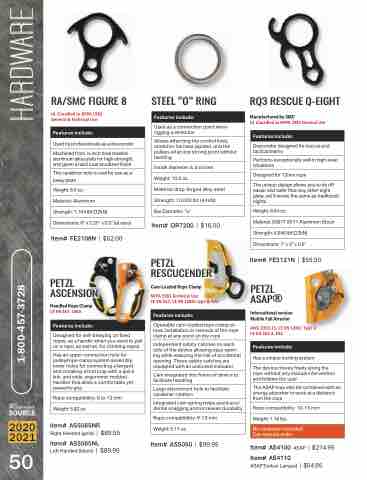

Page 52 - Rescue Source Catalog
P. 52
2020
2021
50
RA/SMC FIGURE 8 UL Classified to NFPA 1983
General & Technical Use
STEEL “O” RING
RQ3 RESCUE Q-EIGHT Manufactured by SMC
UL Classified to NFPA 1983 General Use
Features include:
Used as a connection point when rigging a stretcher
Allows attaching the control lines, stretcher harness (spider), and the pulleys all at one strong point without twisting
Inside diameter is 3 inches
Weight: 10.9 oz.
Material: drop-forged alloy steel
Strength: 10,000 lbf. (44 kN)
Bar Diameter: 1/2”
Features include:
Used by professionals as a descender
Machined from 1⁄2 inch heat treated aluminum alloy plate for high strength, and given a hard coat anodized finish
The carabiner hole is oval for use as a belay plate
Weight: 6.5 oz.
Material: Aluminum
Strength: 7,194 lbf (32kN)
Dimensions: 6” x 5.25” x 0.5” (at ears)
Features include:
Descender designed for rescue and tactical teams
Performs exceptionally well in high-wear situations
Designed for 12mm rope
The unique design allows you to tie off easier and safer than any other eight plate, yet it works the same as traditional eights
Weight: 8.64 oz.
Material: 6061T 6511 Aluminum Stock
Strength: 4,946 lbf (22kN)
Dimensions: 7" x 5" x 0.5”
Item# FE2108N | $62.00 PETZL
Item# OR7200 | $16.00 PETZL
Item# FE2121N | $55.50 PETZL
ASCENSION Handled Rope Clamp
RESCUCENDER Cam-Loaded Rope Clamp
ASAP® International version
CE EN 567, UIAA
NFPA 1983 Technical Use
CE EN 567, CE EN 12841 type B, EAC
Features include:
Mobile Fall Arrester
ANSI Z359.15, CE EN 12841 CE EN 353-2, EAC
Features include:
Openable cam-loaded rope clamp al- lows installation or removal of the rope clamp at any point on the rope
Type A
Designed for self-belaying on fixed ropes, as a handle when you need to pull on a rope, as well as, for climbing ropes
Independent safety catches on each side of the device allowing easy open- ing while reducing the risk of accidental opening. These safety catches are equipped with an unlocked indicator
Features include:
Has a unique locking system
The device moves freely along the rope without any manual intervention and follows the user
The ASAP may also be combined with an energy absorber to work at a distance from the rope
Rope compatibility: 10-13 mm
Weight: 1.16 lbs.
No carabiner included Can special order
Has an upper connection hole for pulley/rope clamp system assembly, lower holes for connecting a lanyard and installing a foot loop with a quick link, and wide, ergonomic molded handles that allow a comfortable yet powerful grip
Rope compatibility: 8 to 13 mm
Item# AS5065NR
Right Handed (gold) | $89.95 Item# AS5065NL
Left Handed (black) | $89.95
Item# AS5050 | $99.95
Item# AS4100 ASAP | $214.95
Item# AS4110
ASAP‘Sorber Lanyard | $54.95
Cam integrated into frame of device to facilitate handling
Large attachment hole to facilitate carabiner rotation
Integrated cam spring helps avoid acci- dental snagging and increases durability
Weight: 5.82 oz.
Rope compatibility: 9-13 mm
Weight: 9.17 oz.
1-800-457-3728
HARDWARE
