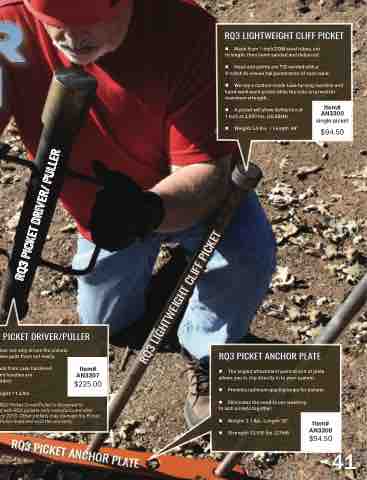

Page 43 - Rescue Source Catalog

Item# AN3307
$225.00
Item# AN3300 single picket
$94.50
Item# AN3308
$94.50
41
R M
RQ3 LIGHTWEIGHT CLIFF PICKET n Made from 1-inch DOM steel tubes, cut
to length, then hand-sanded and deburred.
n Head and points are TIG welded with a V-notch to ensure full penetration of each weld.
n We use a custom-made tube turning machine and hand-weld each picket while the tube is turned for maximum strength.
n A picket will show deflection of 1 inch at 2,000 lbs. (26.68kN)
n Weight: 5.9 lbs. | Length: 48”
3 PICKET DRIVER/PULLER
iver not only drives the pickets also pulls them out easily.
ade from case hardened and handles are
elded.
eight: 11.2 lbs.
RQ3 PICKET ANCHOR PLATE n The angled attachment point at end of plate
allows you to clip directly in to your system.
n Providesoptimumspacing/angleforpickets.
n Eliminates the need to use webbing to lash pickets together.
n Weight: 3.1 lbs., Length: 35" n Strength: 12,000 lbs. (27kN)
RQ3 Picket Driver/Puller is designed to
d with RQ3 pickets only manufactured after ary 2016. Other pickets may damage the Picket /Puller head and void the warranty.
RQ3 PICKET DRIVER/ PULLER
RQ3 LIGHTWEIGHT CLIFF PICKET
RQ3 PICKET ANCHOR PLATE
