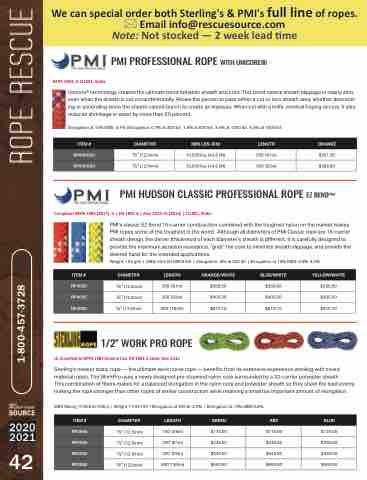

Page 44 - Rescue Source Catalog

2020
2021
42
We can special order both Sterling's & PMI's full line of ropes. *Email info@rescuesource.com
Note: Not stocked — 2 week lead time
PMI PROFESSIONAL ROPE WITH UNICORE®
NFPA 1983, G CI1801, Static
Unicore® technology creates the ultimate bond between sheath and core. This bond means sheath slippage is nearly zero, even when the sheath is cut circumferentially. Allows the person to pass either a cut or torn sheath area, whether descend- ing or ascending since the sheath cannot bunch to create an impasse. When cut with a knife, minimal fraying occurs. It also reduces shrinkage in water by more than 50 percent.
Elongation at 10% MBS: 3.7% | Elongation: 0.7% at 300 lbf., 1.6% at 600 lbf., 3.5% at 1000 lbf., 6.3% at 1800 lbf.
PMI HUDSON CLASSIC PROFESSIONAL ROPE EZ BENDTM Compliant NFPA 1983 (2017), G | EN-1891 A | Ansi Z359.15 (2014) | CI1801, Static
PMI’s classic EZ Bend 16-carrier construction combined with the toughest nylon on the market makes PMI ropes some of the toughest in the world. Although all diameters of PMI Classic rope are 16-carrier sheath design, the denier (thickness) of each diameter’s sheath is different. It is carefully designed to provide the maximum abrasion resistance, “grab” the core to minimize sheath slippage, and provide the desired hand for the intended applications.
Weight: 104 g/m | MBS: 43.6 kN (9804 lbf) | Elongation: .8% at 300 lbf | Elongation at 10% MBS: 3.6%-4.2%
1/2" WORK PRO ROPE UL Classified to NFPA 1983 General Use, EN 1891 A Static Ansi Z133
Sterling's newest static rope — the ultimate work horse rope — benefits from its extensive experience working with mixed material ropes. The WorkPro uses a newly designed pre-steamed nylon core surrounded by a 32-carrier polyester sheath.
This combination of fibers makes for a balanced elongation in the nylon core and polyester sheath so they share the load evenly, making the rope stronger than other ropes of similar construction while retaining a small but important amount of elongation.
MBS Rating 10,565 lb (45kn) | Weight 7.4 lb/100’ | Elongation at 300 lb-3.2% | Elongation at 10% MBS 9.8%
ITEM #
DIAMETER
MBS LBS. (KN)
LENGTH
ORANGE
RP600O20
1⁄2” (12.5mm)
10,009 lbs. (44.5 kN)
200’ (61m)
$291.00
RP600O30
1⁄2” (12.5mm)
10,009 lbs. (44.5 kN)
300’ (92m)
$436.80
ITEM #
DIAMETER
LENGTH
ORANGE/WHITE
BLUE/WHITE
YELLOW/WHITE
RP4055
1⁄2” (12.5mm)
200’ (61m)
$269.90
$269.90
$269.90
RP4055
1⁄2” (12.5mm)
300’ (92m)
$405.00
$405.00
$405.00
RP4055
1⁄2” (12.5mm)
600’ (183m)
$810.10
$810.10
$810.10
ITEM #
DIAMETER
LENGTH
GREEN
RED
BLUE
RP2050
1⁄2” (12.5mm)
150’ (46m)
$175.00
$175.00
$175.00
RP2050
1⁄2” (12.5mm)
200’ (61m)
$235.00
$235.00
$235.00
RP2050
1⁄2” (12.5mm)
300’ (92m)
$345.00
$345.00
$345.00
RP2050
1⁄2” (12.5mm)
600’ (183m)
$692.50
$692.50
$692.50
